EEKI Dishwasher Customization Plan
4.3 Meter Fully Automatic Dishwashing, Rinsing, Drying, and Sterilizing Integrated Machine
(Specialized conveyor belt mesh, no basket loading required, suitable for cleaning hotel/school plates and dishes)
(I) 1 Set Main Wash + 1 Set Rinsing + 1 Set Sterilization + 1 Set Drying (Reference Image)
Dishwasher Technical Parameters:
Items | Parameter | Items | Parameter |
Model | JK-S430A | Heating Method | Electric/Steam Heating |
Dimensions | 4300*850*1920MM | Max Cleaning Height | 400mm |
Wash Pump Power | 2.2KW | Tank Heating Power | 18KW |
Conveyor Motor Power | 0.75KW | Rinse & Heating Power | 27KW |
Water Consumption | 500L | Drying Section Power | 12KW |
Processing Capacity | 2500-4000 units/H | Processing Method | Upper/Lower High-Pressure Spray |
Washing Method | Pin Gear Type | Total Power (Elec/Steam) | 60KW/15KW |
Washable Materials | Ceramic/Stainless Steel/Melamine/Imitation Porcelain, etc. | ||
Note: If using steam heating, must provide steam or steam boiler/natural gas boiler | |||

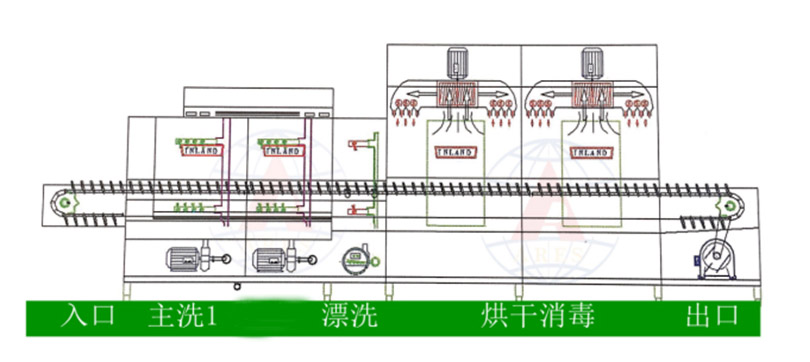

CAD Rendering (Image for reference only)
Note:
1. All cleaning times are based on the average medium speed of actual operation, fully considering the actual operating speed of personnel, and are not theoretical calculated speeds.
2. The product appearance may be improved and changed; the specific form will vary according to the site size and actual tableware types, and may not be identical to the pictures. The actual product shall prevail.

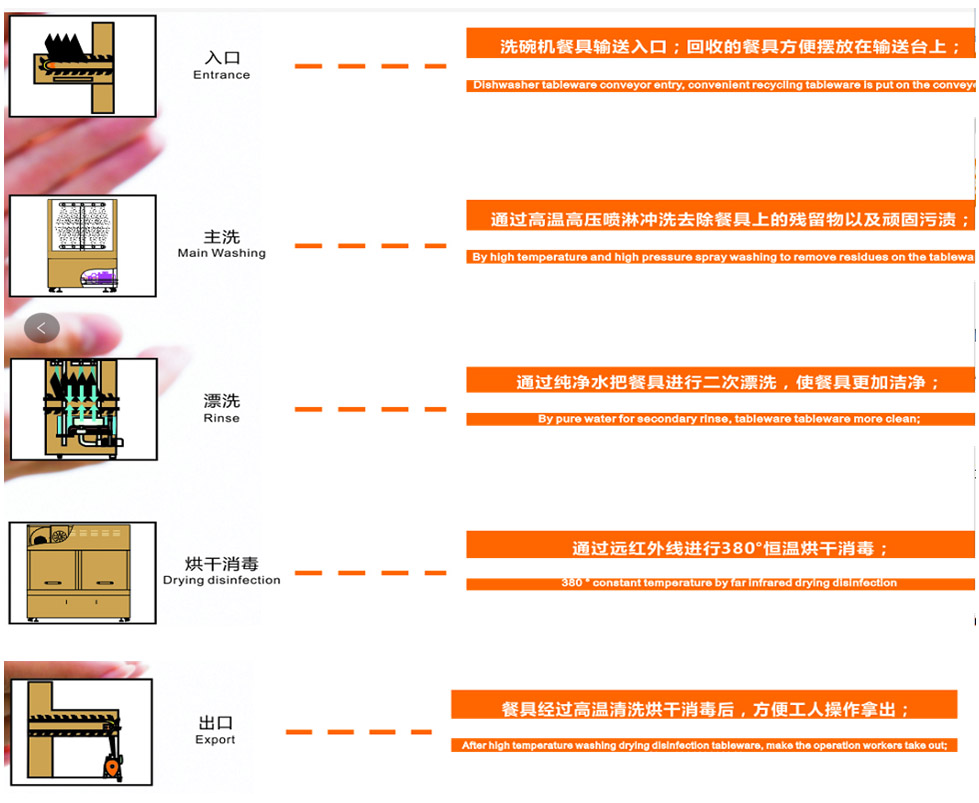

Image Operation Process
Workers place tableware onto the washing machine, which then automatically washes, spray rinses, rinses, dries, and conveys the tableware out.
Dishwasher Energy Consumption Table:
Category/H | Parameter |
Power Consumption (Elec Heat/Steam Heat) | 60KW/15KW |
Water Consumption | 500L |
Cleaning Capacity | 2500-4000 units |
Dishwasher Alkaline Liquid (20L) | 0.4-0.6L/H |
Rinse Aid (20L) | 0.5L/H |
Required Personnel | 2-3 people |
Total Equipment Length: 4300MM
Dimensions are as follows:
External Dimensions (L×W×H): 4300 mm × 850 mm × 1920 mm;
Installation Connection Requirements:
Rated Electrical Power: Three-phase five-wire system (one ground wire);
Main Unit Power Cable Diameter: 25mm²
Dryer Power Cable Diameter: 10mm²
Water Inlet Pipe Diameter: φ20mm
Drain Pipe Diameter: φ50mm
Water Inlet Pressure (Flow Pressure): 0.3-5 kg/cm²
Water Inlet Temperature: 10-60°C
Water Inlet Hardness: 0.034-0.103 g/L
Steam Inlet Pipe Diameter: φ20mm
Steam Outlet Pipe Diameter: φ20mm
Steam Consumption: 45 kg/H (or 50kg/H below)
Steam Inlet Pressure: 0.2-0.35 MPa (or 0.2-0.35 kg/cm² )
