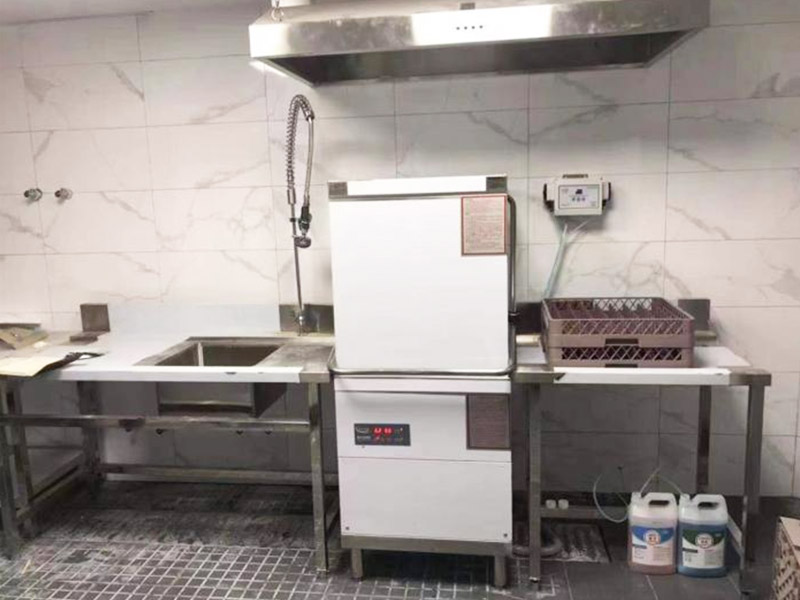

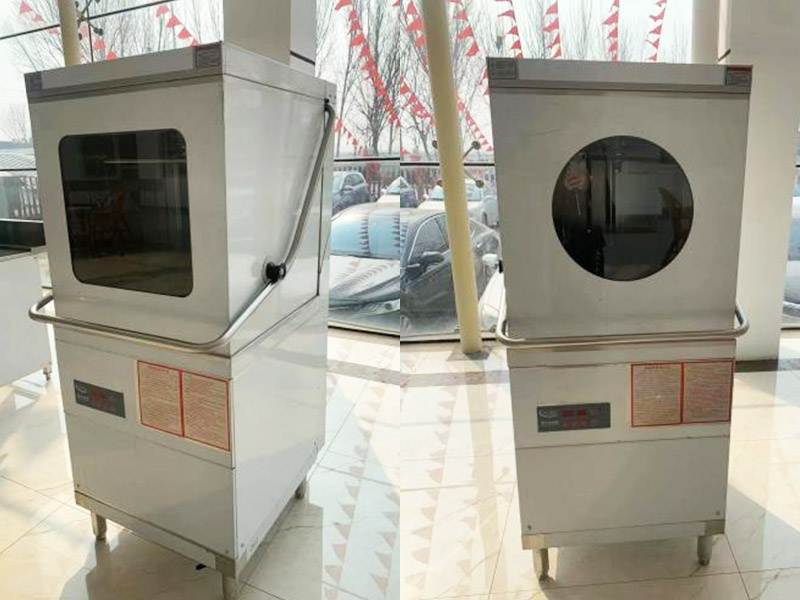

JK-T680 Hood Type Dishwasher (Dual Tank, Dual Pump)
JK-T680 Commercial Dishwasher Installation Connection Requirements:
Item | Specification |
Rated Power Consumption (Electric/Gas, 3-Phase 5-Wire System) | 15.5kw / 380v / 50hz / 3p |
Power Cable Diameter | 10mm² |
Water Inlet Pipe Diameter | ф25mm |
Drain Pipe Diameter | ф50mm |
Water Inlet Pressure (Flow Pressure) | 0.3-5kg/cm² |
Water Inlet Temperature | 10-60℃ |
Water Inlet Hardness | 0.034-0.103g/L |
Product Technical Parameters:
Item | Specification |
Heating Method | Electric Heating |
Dimensions (mm) | 750×900×1450 |
Washing Capacity (Baskets/Hour) | 60 Baskets/Hour |
Wash Pump Power | 0.5kw |
Wash Heater Power (Electric/Gas) | 6KW |
Rinse Heater Power (Electric/Gas) | 9KW |
Maximum Power Allocation (Electric/Gas) | 15.5KW |
Detailed Dishwasher Parameters:
Model | Name | Power Specification | Basket Size | Capacity | Rinse Water Usage | Inlet Height | Gross/Net Weight | Rated Total Power | Packaging Size |
JK-T680 | Hood type Dishwasher | 380V/50HZ | 500*500mm | 60Racks/h | 3L/h | 430mm | 165/130kg | 15.5KW | 830*730*1600mm |
Six Key Advantages:
Low Cost
High Efficiency
High Quality
Low Noise
High Energy Saving
High Safety Performance
Low Labor Costs: Saves manpower, reducing your costs by up to 70%.
Low Tableware Costs: Saves tableware, reducing your tableware needs by one-third.
Low Breakage Rate: The dishwasher's entire workflow is smooth and straightforward.
Remarks:
The machine requires a 380V 3-phase power supply, a 100A leakage protector, and a 16mm² standard national copper core 3-phase 5-wire cable.
This machine requires pre-rinsing items before loading them into racks for the main wash cycle. Therefore, a pre-rinse sink needs to be equipped beforehand.
Requires dedicated detergent and rinse aid, which can be procured from our company.
